Cantilever Jib Crane Wall/Column Mounted - 3/4 Ton (1,500 lbs)
SKU 313-1500-8
Save 5%
Original price
$2,038.82
Original price
$2,038.82
-
Original price
$12,972.48
Original price
$2,038.82
Current price
$1,934.30
$1,934.30
-
$12,307.42
Current price
$1,934.30
HOIST AND TROLLEY NOT INCLUDED IN PRICE

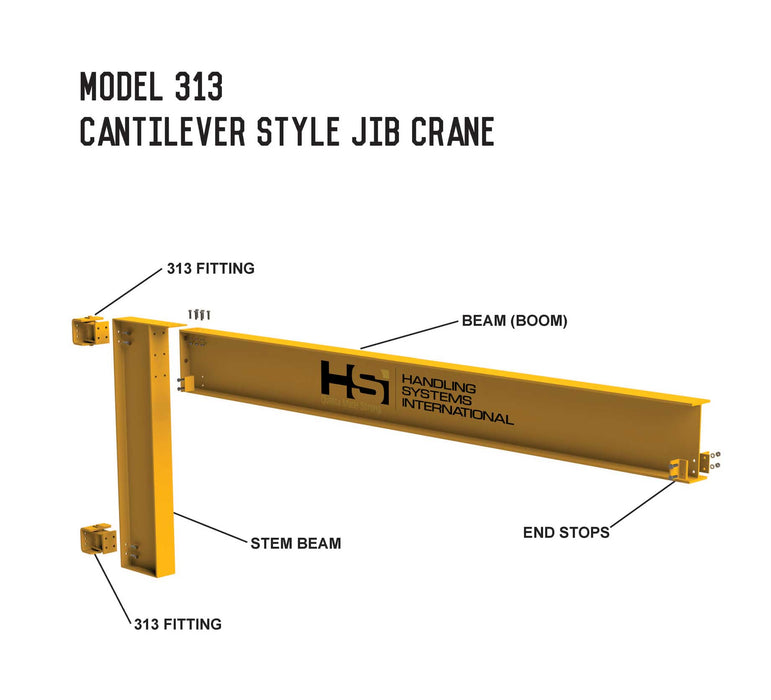

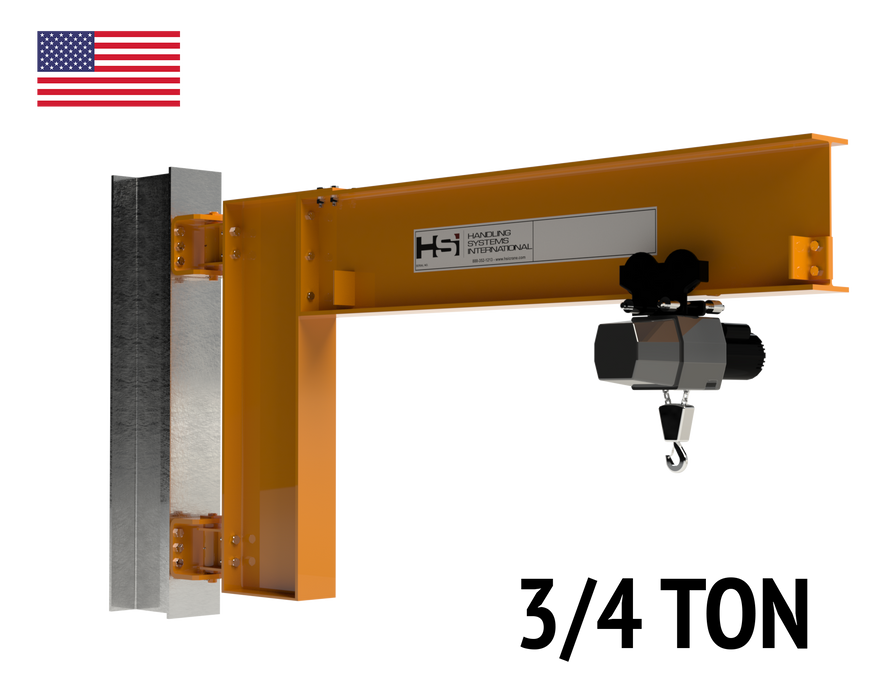

Cantilever Style Jib Crane

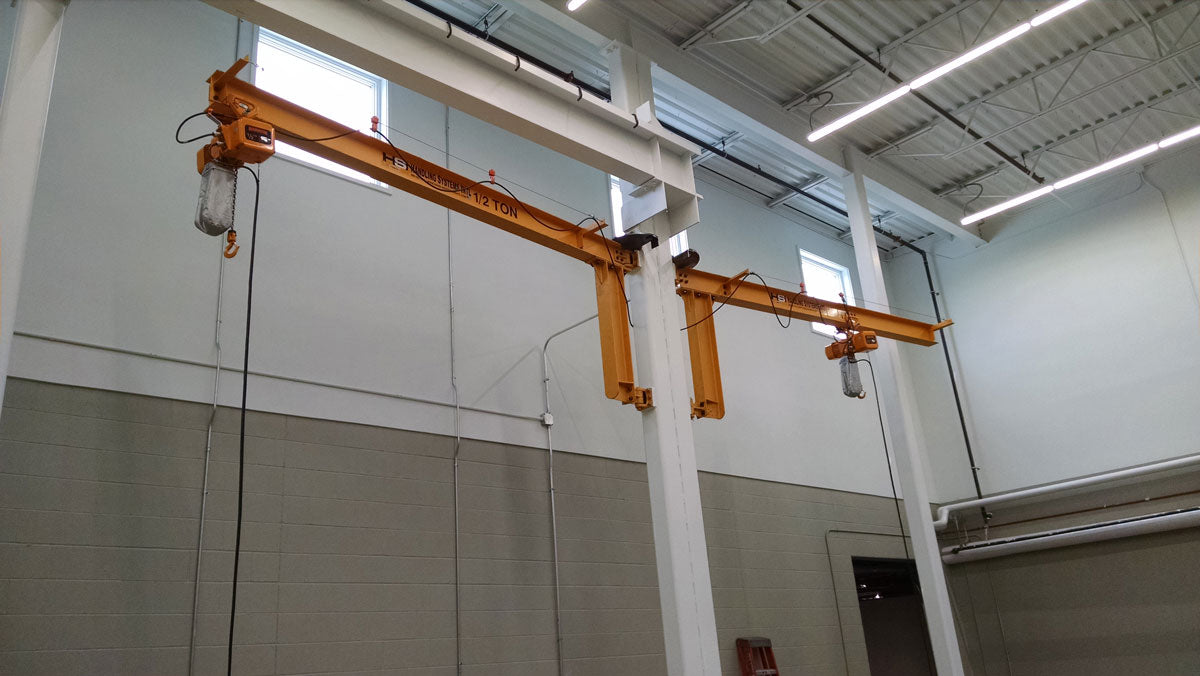

The model 313 cantilever style column mounted jib crane is a low headroom style crane designed for individual use in bays, along walls, in work cells, or as a supplement to overhead crane or gantry systems.
Maximize Hoist Lift
This design allows for maximum hoist lift as the beam can be mounted closer to the underside of an overhead obstruction. When combined with bronze bushings and oil impregnated bronze thrust washers, it becomes the perfect solution for easy rotation and precise load positioning.
Easy to Install
- Single tie rod, right hand threaded at both ends
- Bolted connections with bolt on trolley end stops
- Grease fittings included for easy field lubrication
Capacity
1,500 lbs (3/4 Ton)
Other Span Sizes and Capacities available. Contact for pricing and availability.
